Air cooling EPS Shape Moulding Machine / EPS machine / block making machine
1. This machine adopts PLC programmable controller and touch interpersonal interface control, automatic feeding, automatic control feeding process, with forming a complete guarantee automatic cycle of production equipment.
2. The machine uses high-quality square tube and steel plates welded together, the various templates have been heat-treated, assembled a small deformation, high strength and durability.
3. The aircraft perform fully automatic, semi-automatic and manual operation of four middle start operating mode with safety protection devices, can ensure safe and reliable operation.
4. The machine uses programmable controllers, touch man-machine interface. The executable computer production control management, high degree of automation, simple operation, low labor intensity and convenient maintenance.
5. The machine adopts the international advanced electro-hydraulic integration, improve product forming speed, a significant reduction in energy consumption, reduce environmental pollution.
6. The machine uses a variety of heating technology, a variety of feeding methods and cooling.
7. The machine vacuum system to accelerate the speed of product performance, reduce cooling time, low moisture content products.
8. The machine uses control instruments, electric original pneumatic components, valves and other facilities, both domestic and international high-quality brand-name products.
9. The machine is perfect fault self-diagnosis and motor overload protection systems, relay protection, and ensure safe operation of the PLC and touch man-machine interface.
10. The aircraft FAV1400 type machine mold frame can be common 1000 ~ 1400 mm mold, FAV1750 mold box Universal 1400 ~ 1750 mm mold.
11. Alternatively mechanical or hydraulic stripping machine models.
Electronic control:
Adopts PLC(Mitsubishi) and touch screen (Schneider), from close-mold, filling,heating,cooling,de-mould, the whole working procedure automatically;
All electronic components adopts famous brand(Schneider, Germany gauge), greatly increased stable;
Adopts PLC controller, to set the digital coder, easy adjustment, and more accurate.
Technical Parameter:
| DES | Unit/ item | HR500 | HR900 | HR1300 | HR1500 | HR2000 |
| Mold size | mm | 1200×1000 | 1400×1200 | 1600×1350 | 1800×1530 | 2000×1750 |
| Product size | mm | 1060×810×300 | 1230×1030×300 | 1480×1180×300 | 1560×1360×300 | 1780×1580×300 |
| Mold open distance | mm | 200-1300 | 200-1300 | 200-1300 | 200-1300 | 200-1300 |
| Steam consumption | Kg/cycle | 7 | 9 | 10 | 11 | 13 |
| Vacuum pump capacity | m3/h | 165 | 230 | 280 | 180 | 280 |
| Power | KW | 11 | 13.5 | 16 | 19.6 | 23 |
| Outsize | mm | 4850×1860×3900 | 5100×2160×4000 | 5300×2250×4200 | 5400×2550×4600 | 5500×2800×4850 |
| Weight | kg | 4150 | 4300 | 4500 | 5000 | 6800 |
Product Tags:
|
|

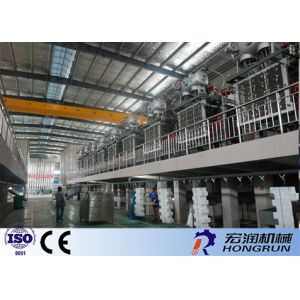

Air Cooling EPS Shape Molding Machine With PLC Controller 1560×1360×300mm Images
|
